Polypipe Single Zone Master Control Unit PB1ZM

PB1ZM - Polypipe Single Zone Master Unit

KEPT IN STOCK AT TDL

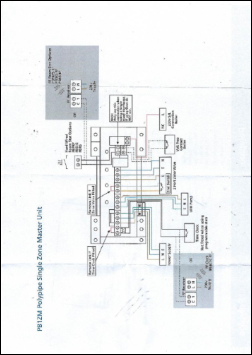

The PB1ZM Provides wiring connections for Boiler, Zone Valve, UFH Pump and Power supply and Single Room Thermostat

The PB1ZM Single zone master unit is designed to provide all of the necessary electrical connections for you polypipe underfloor heating system including the pump, motorised zone valve, boiler (both 230v & volt free) and single room thermostat* A series of LED displays are also incorporated which provide a visual indication of the relevent operational mode.

*Only connect a room thermostat if used for a single zone control application

For mulitple room control must be used with either a four or six zone slave unit

Technical Data:

Operating temperature: 0°C to 50°C
Protection: Class 1 IP20
Power Supply: 230v AC +/- 10%
Fuse Rating: 2.5A
Output: 1 x 230v AC (limited by main fuse rating)
            1 x Volt Free(8A 250v AC max)
            1 x Room thermostat connection (230v AC)
