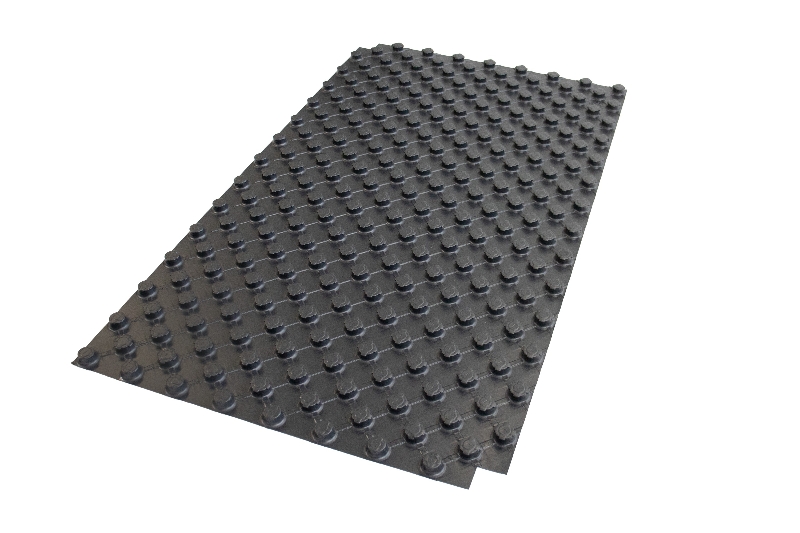

Polypipe Low Profile Screed System 1450mm X 850mm X 21mm With Adhesive - UFHLP15 - Box of 16 Panels

The Low-Profile 15 System is a low-profile injection moulded underfloor heating system, designed mainly for refurbishment
projects (RMI) where floor build-up is at a premium.
The panel has been designed for optimum system performance and to ensure accurate installation and pipe positioning. The
panels are manufactured from 100% recycled polystyrene, panels can be cut to size quickly and easily, thus allowing for a quick
and easy installation in any size or shaped room.
The panel's interlock for easy storage and carrying and form a precise grid for the pipe; ensuring minimum pipe bend radius is
achieved. In addition, with the panels being self-adhesive backed this allows for easy fixing to the insulation layer whilst the
castellations provide protection for the pipe from onsite foot traffic as well.

Typical Heat Output at 50⁰C Mean Water Temperature 91W/m2 at 100mm Pipe Spacing
Recommended Design Flow Temperatures 35-50⁰C
Maximum Circuit Length 120m
13.5m2 at 100mm pipe centres
17.5m2 at 150mm pipe centres
25m2 at 200mm pipe centres
Maximum Coverage per Circuit
Dimensions 1450mm x 850mm x 21mm (Castellation Height)
Self-Adhesive Backing (Virgin Hot-Melt Glue)
Clear Silicon-Foil Backing (Made of virgin Low Density Polyethylene)
Fixing Method:
Panel: 1 Panel/1.23m2
Ultra-Flexible Pipe: 8.2M Pipe / m2 at 100mm pipe centres
6.4M Pipe / m2 at 150mm pipe centres
4.5M Pipe / m2 at 200mm pipe centres
Edge Expansion Strip: 1.1M / m2
UFH Conduit: 2m/circuit length
Approximate System Component Usages
