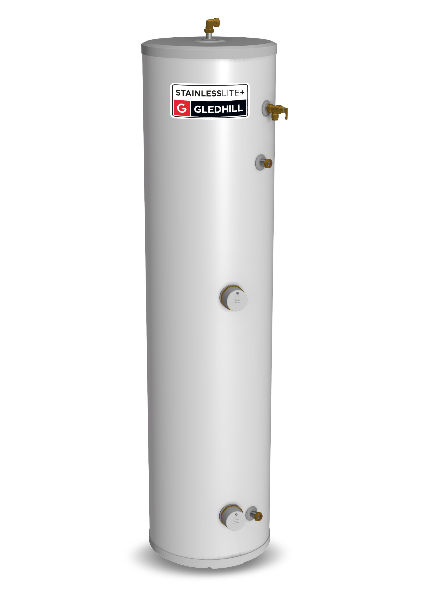

Gledhill Stainless Lite Plus Slimline Unvented Direct Cylinder 150 Litre - PLUDR150SL

Gledhill Stainless Lite Plus Slimline Unvented Direct Cylinder 150 Litre

Unvented cylinders designed for restricted spaces

Delivery can be up to 10days. We will email / call you with delivery date after order is placed or call us before and we can check stock/delivery date

The StainlessLite Plus Slimline cylinders were added to our range of duplex stainless steel cylinders, to enable you to utilise those smaller storage areas.

Gledhills standard size StainlessLite Plus cylinders are 550mm in diameter but our slimline range has a reduced diameter of 475mm. This enables installers to fit the slimline cylinders into smaller properties or older homes where there are space limitations, and so increases the range of properties where the benefits of mains pressure hot water can be enjoyed.

StainlessLite Plus Slimline cylinders are available in sizes from 60 litres to 210 litres in indirect models, and 90 litres to 210 litres in direct.

The introduction of the slimline solar range enables homeowners to not only upgrade to a duplex stainless steel cylinder, but also have the added benefit of being able to utilise solar power to contribute to the heating of the store.

Properties that previously could not enjoy mains pressure hot water can now enjoy powerful, mains-pressure performance, incorporating high flow rate controls, ideal for multi bathroom homes, where baths fill very quickly.

You'll still benefit from Gledhill's high heat transfer corrugated tube giving 20% faster recovery than plain tubing, controlled stratification and minimal heat loss.

(Please note all slimline models come complete with an on-peak immersion and the 120-210 direct models also have an off-peak immersion.)

Gledhill Stainless lite Plus Slimline D90-SL Direct Features:

• Gledhill unvented cylinder installation guide
• 25 Year Warranty
• Capacity 152 litres
• Height 1519mm
• Diameter 475mm
• Weight – empty 18KG, full 106KG
• Erp Rating C
• Heat up time 90 minutes
• Secondary return – No
• Maximum inlet pressure 12 Bar
• Pressure reducing valve 3 Bar
• Max working pressure 6 Bar
• 50mm insulation to reduce heat loss
• Lightest cylinder on the market

What Do You Get In The Box?

• 1 x Stainless Lite Plus Unvented cylinder
• 1 x 3KW Incoloy 825 immersion heater
• Expansion vessel with integral brackets supplied in the G3 kit
• Lift up temperature and pressure relief valve
• 3 Bar inlet control
• Compression fittings supplied with unvented products
• 90 degree elbow supplied on the hot water draw off to reduce installation time
