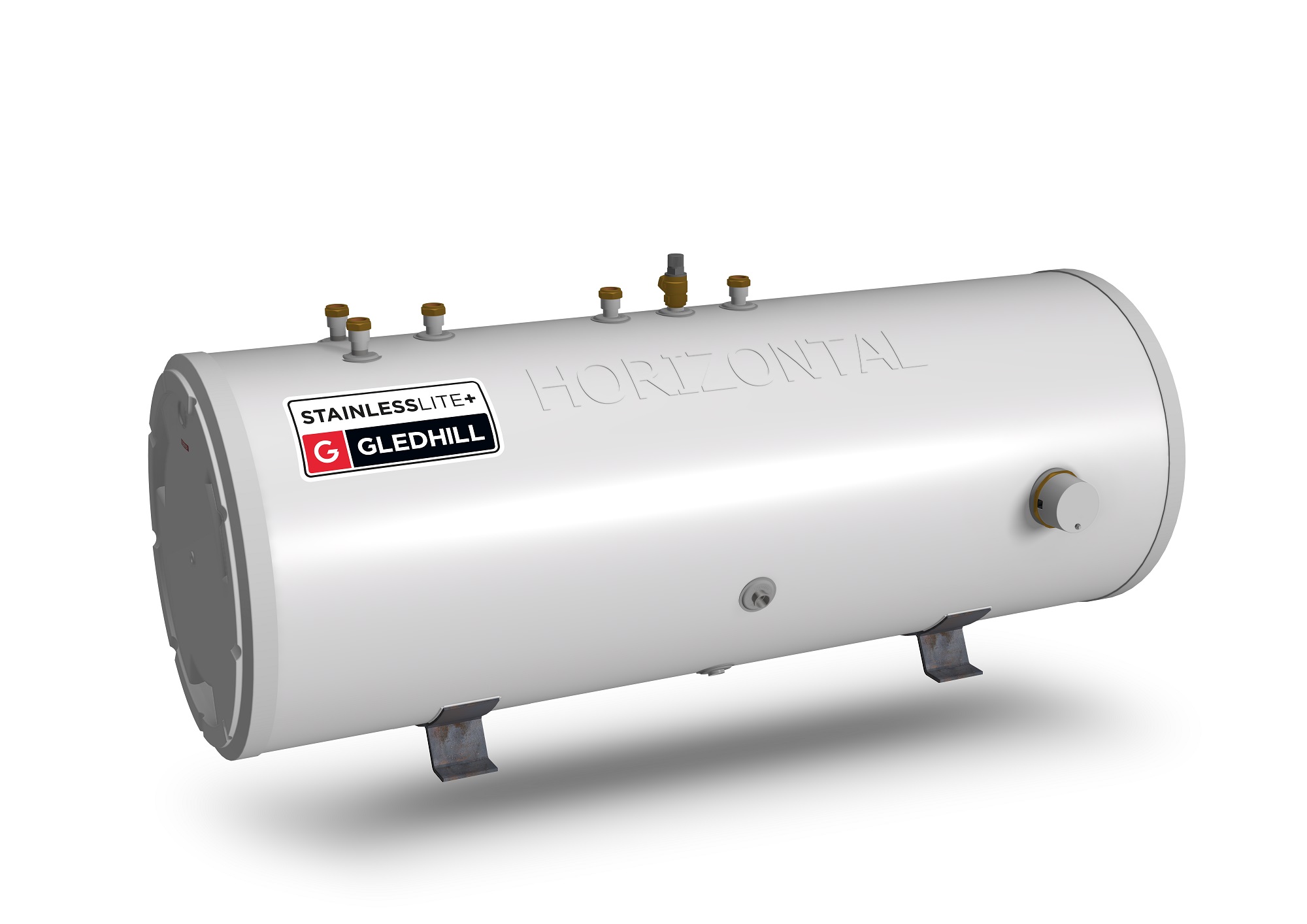

Gledhill Stainless lite Plus Horizontal IND250 Indirect Unvented Cylinder

Model: PLUIN250H (IND250)

PLEASE NOTE: Delivery for this item is Mainland England ONLY

Its high mechanical strength promises durability, while automated welding procedures, post weld pickling and passivating treatment guarantee each individual weld is as strong as its parent metal.

Our StainlessLite Plus cylinders are pressure tested to a full 12 bar – four times their normal working pressure – and injected with 50mm of our HCFC free Enviro Foam insulation to achieve astonishingly low levels of heat loss, which maximises energy efficiency for your customers.

The unvented cylinder is manufactured from highly corrosion-resistant duplex stainless steel and is supplied with full NSF WRC and WRAS independent approvals. Delivers mains pressure hot water, enabling high flow rates for showers and baths, without the need for a boost pump.

Gledhill Stainless lite Plus Horizontal IND250 Indirect Features:

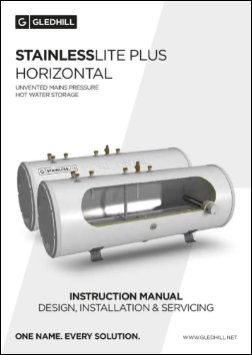

• Gledhill unvented cylinder installation guide
• 25 Year Warranty
• Capacity 244 litres
• Overall Height 588mm
• Overall Width 1744mm
• Diameter 550mm
• Weight – empty 35KG, full 279KG
• Erp Rating C
• Heat up time 27 minutes
• Secondary return – Yes
• Maximum inlet pressure 12 Bar
• Pressure reducing valve 3 Bar
• Max working pressure 6 Bar
• 50mm insulation to reduce heat loss
• Lightest cylinder on the market

What Do You Get In The Box?

• 1 x Stainless Lite Plus Unvented cylinder
• 1 x 3KW Incoloy 825 immersion heater
• Expansion vessel with integral brackets supplied in the G3 kit
• Lift up temperature and pressure relief valve
• 3 Bar inlet control
• Compression fittings supplied with unvented products
• 90 degree elbow supplied on the hot water draw off to reduce installation time
