Heatmiser UH8 8RF Zone Wiring Box

Stock code:  UH1W

Manufacturer:   Heatmiser

£115.00 ex. VAT    £138.00 inc.VAT


The Heatmiser UH8-RF is designed to be used in conjunction with our wireless thermostats.

Eight zones can be controlled as well as providing an output for a hot water cylinder.  Up to 6 actuators can be connected to each zone. A software option in our wireless thermostats allows you to configure which zones are underfloor heating and which are radiators. The RF Switch can be paired to the UH8-RF in order to offer a wireless boiler link.


  • RADIATOR OPTION

    An option is provided on the UH8-N, UH4, UH6 and UH8 for a radiator zone to be controlled. When enabled, the last zone is setup for a radiator zone and therefore doesn’t enable the UFH pump, valve or boiler. On the UH8-RF this option is available per zone.

  • DIN RAIL MOUNTING

    All of our wiring centres offer DIN Rail Mounting.

  • OUTPUT INDICATION

    All of our wiring centres provide LED indication of the zone, boiler, pump and valve status providing the installer an easy method of testing the heating system.

  • EASY INSTALLATION

    The Heatmiser Wiring Centres offer an easy way of installing your underfloor heating system. The wiring centre is usually situated above the UFH manifold allowing easy connections to the actuators, UFH pump and valve.

  • 230V ACTUATORS

    All wiring centres work with 230v actuators. The UH4, UH8-N, UH8 and UH8-RF support up to 6 actuators per zone up to a total board maximum of 5A. The UH6 provides connections for up to 4 actuators per zone.

  • RF CONNECTION

    The UH8-RF offers a wireless connection to our wireless thermostats. In addition, the RF Switch can be used to provide a wireless link to the boiler.

    FEATURE

    UH4

    UH8

    UH8-RF

    RF SWITCH COMPATIBLE

    No

    No

    Yes

    RF BOOST COMPATIBLE

    No

    No

    Yes

    SLIMLINE-RF, TOUCH-RF, NEOAIR COMPATIBLE

    No

    No

    Yes

    NO. HEATING ZONES

    4

    8

    8

    NO. HW ZONES

    1

    NA

    1

    NEON INDICATION

    Yes

    Yes

    Yes

    DIN RAIL MOUNTING

    Yes

    Yes

    Yes

    SUPPLY

    230v AC

    230v AC

    230v AC

    RELAY LOAD MAX

    3A

    3A

    3A

    TOTAL LOAD

    5A

    5A

    5A

    IP PROTECTION

    IP20

    IP20

    IP20

    DIMENSIONS (L,H,D) MM

    384x148x60mm

    384x148x60mm

    384x148x60mm

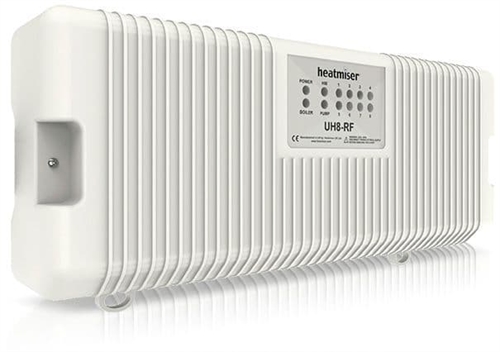

Heatmiser UH8 8RF Zone Wiring Box
Click to enlarge
