Ascent Linear Drain Wetroom Shower Base
Stock code: WETROOM-LIN
Manufacturer: Ascent Showering
Product Information :

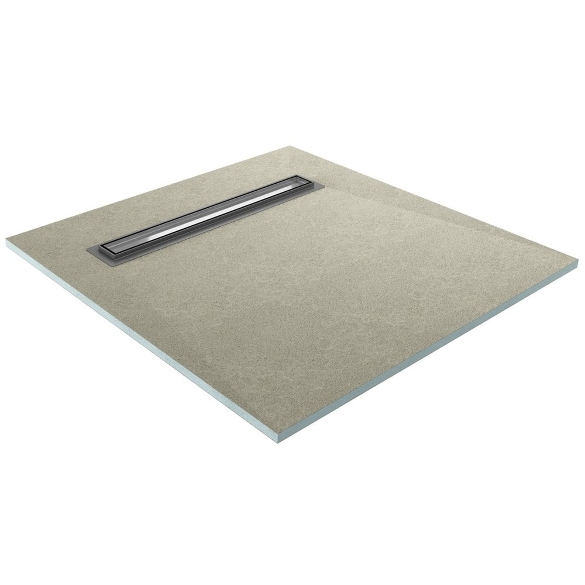

- Pre-formed Wetroom Shower Base
- Designed for walk-in shower and wetroom applications
- Floor level panels that can be trimmed to size on site
- Ready to receive a tiled finish
- Material: Waterproof extruded polystyrene (XPS), covered both sides in a combination of polymer resin and quartz (compatible with most tile adhesives)
- Suitable for use with underfloor heating
- 4 Drain options available
- Rotate shower base for best waste position
Linear Drain Information:
- Pure Drain - ready for tiling with customers choice of tiles (not supplied)

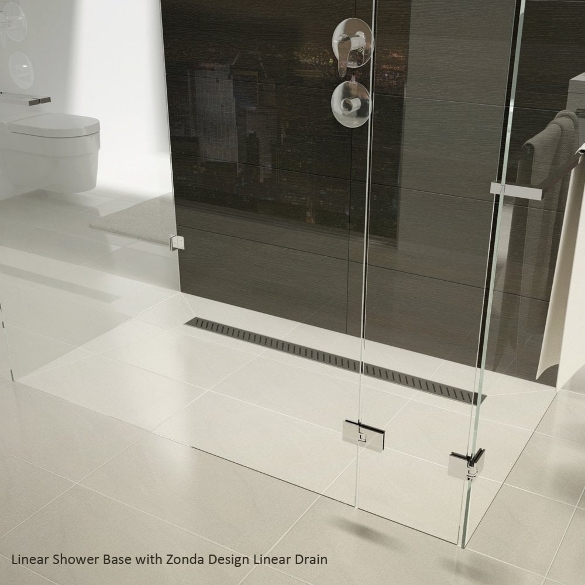

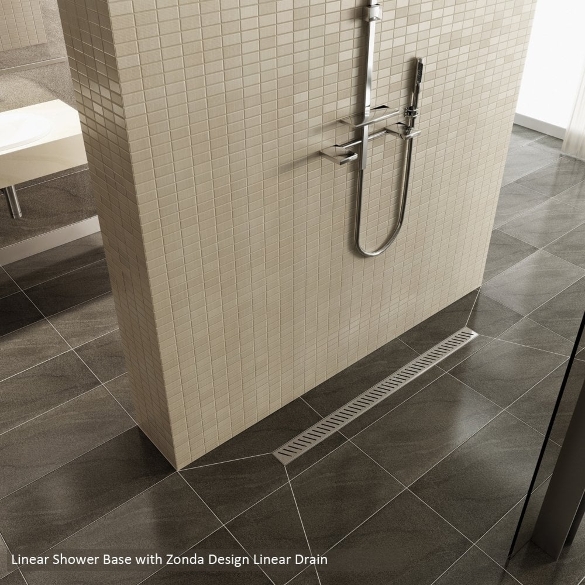

- Zonda Drain - Stainless Steel grating in mirror Chrome finish
- Mistral Drain - Stainless Steel grating with circular designs in mirror chrome finish
- Ponente Drain - Stainless Steel grating with mirror finish
- All Drains include flange, membrane and trap
Technical/Installation Information:
- Can be laid directly onto existing wooden or concrete floors but must be supported over it's entire area, including trap.
- If the shower base is to be laid directly onto the existing floor boards, they must be in good condition and must be screwed down at very close centres.
- When the shower base is laid onto a concrete floor, the surface below the shower base must be perfectly flat, with a channel for the trap and waste pipe.
- Care must be taken when preparing the slopes to the
drain in all applications.
- 10 Year Manufacturers Guarantee
Price is for shower base and drain only.
